    11KG SS304 Battery Pack Tester Air Leak Electronic Pressure Measuring 20kPa

    Ask Lasest Price
    Brand Name : Seals-ins
    Price : $1,000.00 - $10,000.00/Pieces
    MOQ : 1set
    • Product Details
    • Company Profile

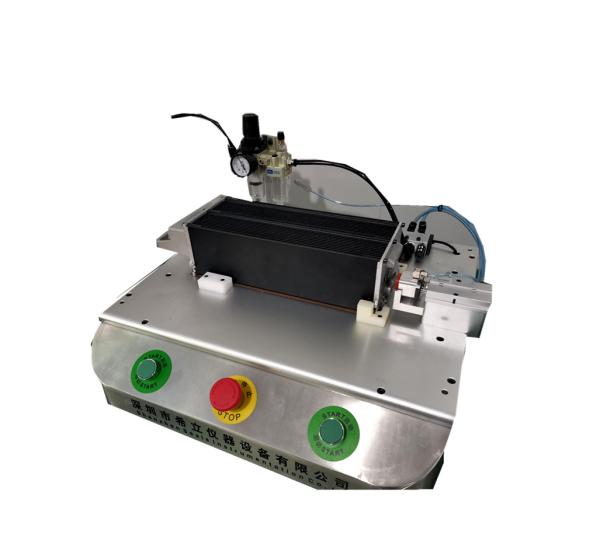

    11KG SS304 Battery Pack Tester Air Leak Electronic Pressure Measuring 20kPa

    High Efficiency Electronic Pressure Measuring Instruments air leak tester for Battery Pack

    Product Paramenters

    It uses positive pressure (or negative pressure) to inflate the tested parts to determine whether the filling gas leaks. The calculation of the change of the material pressure realizes the judgment of the quality of the tested product on the production line. YLA Direct Pressure Leak Detector is used for semi-automatic or full-automatic leak detection using dry compressed air as the medium.


    Item
    Testing Machine
    Test medium
    Compressed air or specified medium by customers
    Gas source
    0.4-0.8MPA (clean, dry)
    Power supply
    AC220V(±15%),50HZ,ground lead
    Environmental temperature
    0-50℃
    Environmental humidity
    ≤95% (not dew)
    Pressure adjustment range
    -20kPa~150kPa
    Number of test ports
    1
    Status of the tested product
    With or without hole, semi finished or finished product
    Pressure mode
    Positive and negative pressure
    Pressure adjustment precision
    0.05%F.S
    Measurement range of the senor
    -20kPa~150kPa
    Measurement range precision of the senor
    0.02%FS
    Pressure minimum setting unit
    1Pa
    Resolution ratio
    1Pa
    Dimension
    335*305*285
    Gross weight
    11KG
