    1Pa 0.8MPA Vacuum Leak Test Apparatus For Electric Toothbrush AC220V

    Ask Lasest Price
    Brand Name : Seals-ins
    Model Number : YLA-M-XXXX-D
    Price : $1,000.00 - $10,000.00/Pieces
    MOQ : 1set
    • Product Details
    • Company Profile

    1Pa 0.8MPA Vacuum Leak Test Apparatus For Electric Toothbrush AC220V

    Leak Test Apparatus for Electric Toothbrush

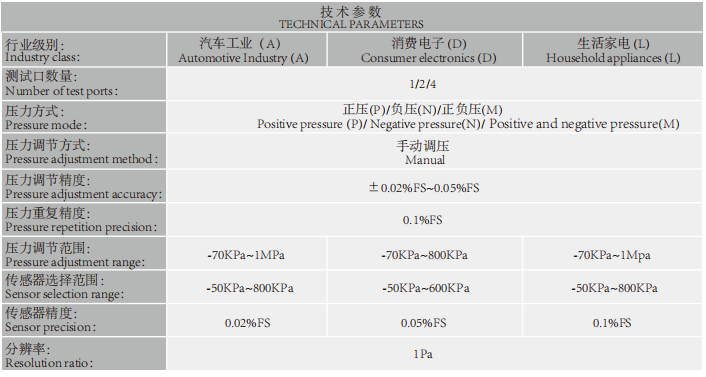

    Product Paramenters
    Item
    Testing Machine
    Test medium
    Compressed air or specified medium by customers
    Gas source
    0.4-0.8MPA (clean, dry)
    Power supply
    AC220V(±15%),50HZ,ground lead
    Environmental temperature
    0-50℃
    Environmental humidity
    ≤95% (not dew)
    Pressure adjustment range
    -20kPa~150kPa
    Number of test ports
    1
    Status of the tested product
    With or without hole, semi finished or finished product
    Pressure mode
    Positive and negative pressure
    Pressure adjustment precision
    0.05%F.S
    Measurement range of the senor
    -20kPa~150kPa
    Measurement range precision of the senor
    0.02%FS
    Pressure minimum setting unit
    1Pa
    Resolution ratio
    1Pa
    Dimension
    335*305*285
    Gross weight
    11KG
    Helim test is a leak test and analysis system independently developed by Shenzhen Seals Instrumentation Co., Ltd. and an intelligent air leak detector with the functions of automatic calculation, automatic learning, automatic calibration and so on. It can automatically and accurate display parameters such as the leak rate and pressure drop rate of the product. At the same time, it integrates such functions as bar code scanners, remote control to facilitate the timely tracking the quality of product, and also it can control the auto-test of peripheral equipment, improve test efficiency, and lower the costs.

    SLA leak test detector allows only a positive misjudgment. That is, products that fall within the critical point of the criteria may be judged as bad, but they will never be qualified. (The critical point of evaluation criteria is theoretically eternal, so need to be upgraded to minimize critical mass in actual production)


    Air tightness equipment is used to detect mobile phones, watches, pipelines...The sealing performance of such products, the
    product follows the industry's airtight measurement standards, and has a number of test functions, multi-channel, wide measurement
    range, high measurement accuracy, easy operation, docking equipment (robot, automation equipment) and other characteristics.It is
    widely used in mobile phone mark mouth, mobile phone handset, watch waterproof sealing, pipeline leakage, mould trachoma
    detection....Etc.
