0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V

Shenzhen Seals Instrumentation Co., Ltd.
Contact Now
    Buy cheap 0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V from wholesalers

    Buy cheap 0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V from wholesalers
    • Buy cheap 0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V from wholesalers

    0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V

    Ask Lasest Price
    Brand Name : Seals-ins
    Model Number : YLA-M-XXXX-D
    Price : $1,000.00 - $10,000.00/Pieces
    MOQ : 1set
    • Product Details
    • Company Profile

    0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V

    Compressed Air Leak Detector for Electric Toothbrush

    Product Paramenters
    The automatic ATM ospheric pressure calibration zeroing system and temperature compensation system, etc, are based on our independent research and design, with the functions like test parameters preservation, historical records can be exported, support barcode scanning, connection printer, support remote control, I/O external control to maximize the commitment of different test conditions.
    By calculation of the pressure change of the tested object, we achieve the good or bad judgment of the tested products on the production line.
    This detector can be used for product inspection with or without reserved inspection port, semi-finished or finished product inspection, or fully sealed product inspection.
    Item
    Testing Machine
    Test medium
    Compressed air or specified medium by customers
    Gas source
    0.4-0.8MPA (clean, dry)
    Power supply
    AC220V(±15%),50HZ,ground lead
    Environmental temperature
    0-50℃
    Environmental humidity
    ≤95% (not dew)
    Pressure adjustment range
    -20kPa~150kPa
    Number of test ports
    1
    Status of the tested product
    With or without hole, semi finished or finished product
    Pressure mode
    Positive and negative pressure
    Pressure adjustment precision
    0.05%F.S
    Measurement range of the senor
    -20kPa~150kPa
    Measurement range precision of the senor
    0.02%FS
    Pressure minimum setting unit
    1Pa
    Resolution ratio
    1Pa

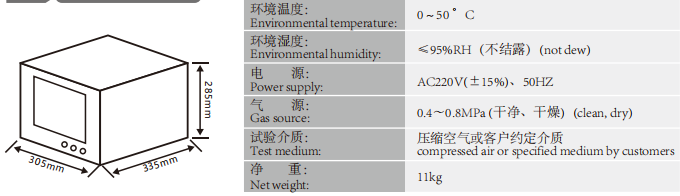

    Dimension
    335*305*285
    Gross weight
    11KG
    0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V
    Quality 0.4MPA 50HZ Compressed Air Leak Detector For Electric Toothbrush AC220V for sale
